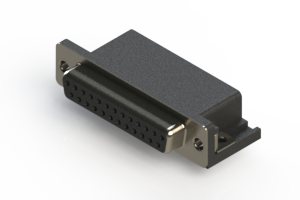

626-025-262-010
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
626 SERIES RIGHT ANGLE D-SUB REC
PDF
/
Inventory: 8811
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Rated Current (Signal) 5A
Contact Style RND PIN-SKT
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.109 inch
Body/Shell Style PLUG
Termination Type SOLDER
Dielectric Withstanding Voltage 1000VAC V
PCB Contact Row Spacing 2.8448 mm
Contact Finish Termination TIN/LEAD
Contact Pattern STAGGERED
Insertion Force-Max 2.78 N
Withdrawl Force-Min .278 N
Mating Contact Row Spacing 0.112 inch
Insulator Color BLACK
Body Depth 0.747 inch
Operating Temperature (Min) -55°C
Contact Gender FEMALE
Body Breadth 0.494 inch
Operating Temperature (Max) 125°C
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Body Length or Diameter 2.088 inch
Reliability COMMERCIAL
Reference Standard UL
Shell Finish NICKEL
Terminal Pitch 2.7686mm
Total Number of Contacts 25
Contact Finish - Mating AU ON NI
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Additional Feature FIXED HEX STANDOFFS
Number of Rows 2
ECCN Code EAR99
Part Status Active
Dimensions
Plating Thickness FLASH inch
Length - Termination 0.125 inch
Compliance
RoHS Status ROHS3 Compliant
Physical
Mounting Option 2 STANDOFF
Mounting Style RIGHT ANGLE
Mounting Option 1 #4-40
Shell Material STEEL
Insulation Material THERMOPLASTIC
Mounting Type BOARD
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 12 Weeks
