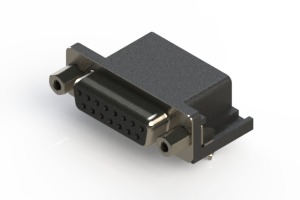

626-015-262-042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 15POS R/A SOLDER
PDF
/
Inventory: 2069
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2010
Series 626
Feature Board Lock, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 15
Color Black
Number of Rows 2
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Type Signal
Total Number of Contacts 15
Current Rating 5A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 1.545 inch
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.494 inch
Body Depth 0.747 inch
Rated Current (Signal) 5A
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Mating Contact Pitch 0.108 inch
Body/Shell Style PLUG
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Shell Size, Connector Layout 2 DA A
Backset Spacing 0.590 (14.99mm)
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
