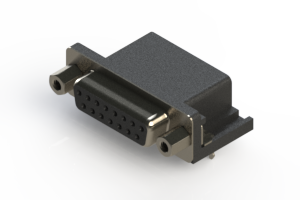

626-015-262-032
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
626 SERIES RIGHT ANGLE D-SUB REC
PDF
/
Buying Options
Total Price: USD $3.73
Unit Price: USD $3.7312
≥1 USD $3.7312
≥10 USD $3.38976
≥100 USD $3.21024
≥500 USD $3.135695
≥1000 USD $2.986386
≥3000 USD $2.613063
Inventory: 136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type BOARD
Insulation Material THERMOPLASTIC
Shell Material STEEL
Mounting Option 1 #4-40
Mounting Style RIGHT ANGLE
Mounting Option 2 THREADED
Technical
Part Status Active
ECCN Code EAR99
Number of Rows 2
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating AU ON NI
Total Number of Contacts 15
Terminal Pitch 2.7432mm
Shell Finish NICKEL
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.545 inch
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Operating Temperature (Max) 125°C
Body Breadth 0.494 inch
Contact Gender FEMALE
Operating Temperature (Min) -55°C
Body Depth 0.747 inch
Rated Current (Signal) 5A
Contact Style RND PIN-SKT
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.108 inch
Body/Shell Style PLUG
Termination Type SOLDER
Dielectric Withstanding Voltage 1000VAC V
PCB Contact Row Spacing 2.8448 mm
Contact Finish Termination TIN/LEAD
Contact Pattern STAGGERED
Insertion Force-Max 2.78 N
Withdrawl Force-Min .278 N
Mating Contact Row Spacing 0.112 inch
Insulator Color BLACK
