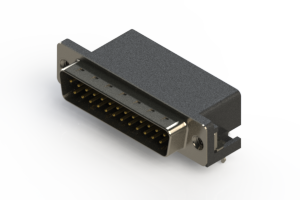

625-025-262-032
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 25POS R/A SOLDER
PDF
/
Inventory: 9821
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Technical
Backset Spacing 0.590 (14.99mm)
Shell Size, Connector Layout 3 DB B
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style RECEPTACLE
Mating Contact Pitch 0.109 inch
Flange Feature Housing/Shell (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 10mOhm
Rated Current (Signal) 5A
Body Depth 0.747 inch
Body Breadth 0.494 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 5A
Total Number of Contacts 25
Contact Type Signal
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Number of Rows 2
Color Black
Number of Positions 25
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Grounding Indents, Shielded
Series 625
Published 2010
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
