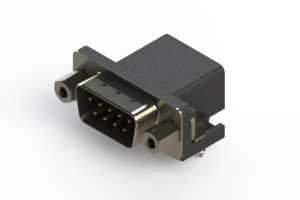

625-009-262-043
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
625 SERIES RIGHT ANGLE D-SUB PLU
PDF
/
Inventory: 2664
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.125 inch
Plating Thickness FLASH inch
Technical
Insulator Color BLACK
Mating Contact Row Spacing 0.112 inch
Withdrawl Force-Min .278 N
Insertion Force-Max 2.78 N
Contact Pattern STAGGERED
Contact Finish Termination TIN/LEAD
PCB Contact Row Spacing 2.8448 mm
Dielectric Withstanding Voltage 1000VAC V
Termination Type SOLDER
Body/Shell Style RECEPTACLE
Mating Contact Pitch 0.108 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 10mOhm
Contact Style RND PIN-SKT
Rated Current (Signal) 5A
Body Depth 0.747 inch
Operating Temperature (Min) -55°C
Contact Gender MALE
Body Breadth 0.494 inch
Operating Temperature (Max) 125°C
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Body Length or Diameter 1.214 inch
Reliability COMMERCIAL
Reference Standard UL
Shell Finish NICKEL
Terminal Pitch 2.7432mm
Total Number of Contacts 9
Contact Finish - Mating AU ON NI
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Additional Feature WITH STANDOFFS
Number of Rows 2
ECCN Code EAR99
Part Status Active
Physical
Mounting Option 2 THREADED
Mounting Style RIGHT ANGLE
Mounting Option 1 #4-40
Shell Material STEEL
Insulation Material THERMOPLASTIC
Mounting Type BOARD
Contact Material BRASS
Supply Chain
Factory Lead Time 12 Weeks
