624-009-361-031
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

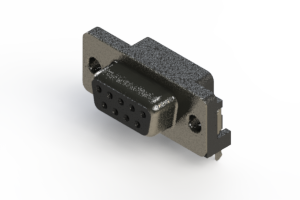

624 SERIES RIGHT ANGLE D-SUB PLU
PDF
/
Inventory: 8994
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Contact Gender FEMALE
UL Flammability Code 94V-0
Empty Shell NO
Body/Shell Style RECEPTACLE
Shell Size 1/E
Termination Type SOLDER
Contact Finish Termination TIN
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Finish NICKEL
Total Number of Contacts 9
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating GOLD (15) OVER NICKEL
HTS Code 8536.69.40.30
Additional Feature SHIELDED, POLARIZED
Connector Type D SUBMINIATURE CONNECTOR
ECCN Code EAR99
Part Status Active
JESD-609 Code e3
Compliance
RoHS Status ROHS3 Compliant
Physical
Shell Material STEEL
Insulation Material POLYETHYLENE POLYESTER
Mounting Type BOARD
Contact Material BRASS/PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 12 Weeks
