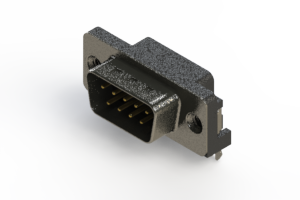

623-009-661-032
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 9POS R/A SOLDER
PDF
/
Inventory: 2153
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Width 14.6mm
Length 30.8mm
Height 12.6mm
Technical
Backset Spacing 0.200 (5.08mm)
Shell Size, Connector Layout 1 DE E
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold
Current Rating 5A
Total Number of Contacts 9
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature SHIELDED, POLARIZED
Number of Rows 2
Color Black
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Grounding Indents, Shielded
JESD-609 Code e3
Series 623
Published 2005
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Material Metal
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
