623-009-661-031
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

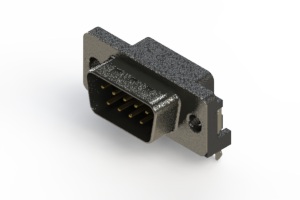

623 SERIES RIGHT ANGLE D-SUB PLU
PDF
/
Inventory: 8592
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material BRASS/PHOSPHOR BRONZE
Mounting Type BOARD
Insulation Material POLYETHYLENE POLYESTER
Shell Material STEEL
Technical
JESD-609 Code e3
Part Status Active
Connector Type D SUBMINIATURE CONNECTOR
Additional Feature SHIELDED, POLARIZED
Contact Finish - Mating GOLD (30) OVER NICKEL
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 9
Shell Finish NICKEL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender MALE
UL Flammability Code 94V-0
Empty Shell NO
Body/Shell Style PLUG
Shell Size 1/E
Termination Type SOLDER
Contact Finish Termination TIN
Compliance
RoHS Status ROHS3 Compliant
