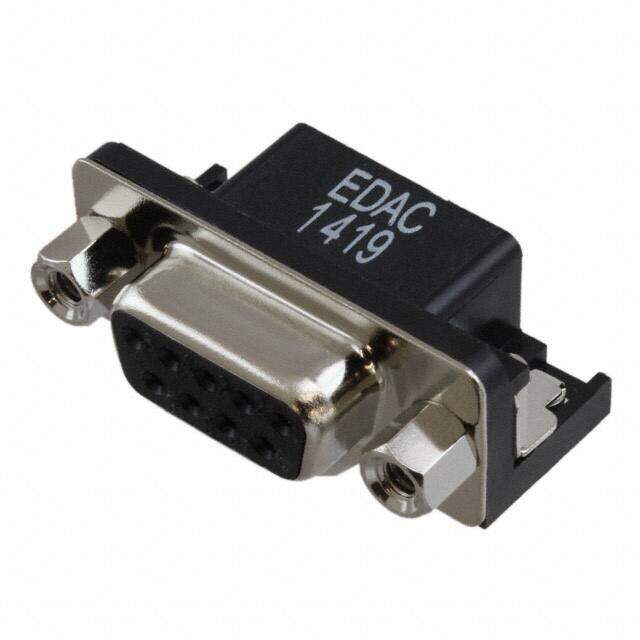

622-009-260-043 image
Favorite
622-009-260-043 image
Favorite

622-009-260-043

EDAC Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors 9P RECEPTACLE 4-40 THREADED
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.8864
≥1 USD $2.8864
≥10 USD $2.62328
≥100 USD $2.484064
≥500 USD $2.426336
≥1000 USD $2.31088
≥3000 USD $2.022029
Inventory: 462
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash
Width 18.3mm
Length 30.8mm
Height 12.6mm

Technical

Backset Spacing 0.318 (8.08mm)
Shell Size, Connector Layout 1 DE E
Number of Ports 1
Connector Style D-Sub
Plating Steel
Max Current Rating 5A
Body/Shell Style PLUG
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 5000000000Ohm
Rated Current (Signal) 5A
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 5A
Orientation Right Angle
Total Number of Contacts 9
Pitch 2.74mm
Contact Type Signal
Subcategory D Type Connectors
Additional Feature STAMPED CONTACTS, STANDOFF
Gender Female
Number of Rows 2
Color Black
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Shielded
JESD-609 Code e3
Series 622
Published 2005
Packaging Tray
Operating Temperature -55°C~105°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Material Metal
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 14 Weeks
