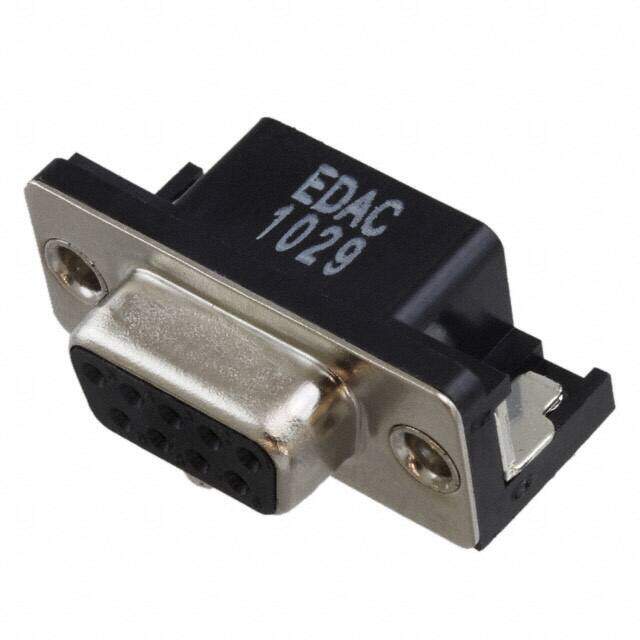

622-009-260-042
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors 9P DSUB R/A FEMALE .318 FOOTPRINT
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.376
≥1 USD $2.376
≥10 USD $2.15864
≥100 USD $2.044768
≥500 USD $1.997072
≥1000 USD $1.902032
≥3000 USD $1.664291
Inventory: 1090
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Package / Case Metal
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Body Material Steel
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2010
Series 622
JESD-609 Code e3
Feature Board Lock, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Black
Number of Rows 2
Gender Receptacle
Additional Feature STAMPED CONTACTS
Subcategory D Type Connectors
Contact Type Signal
Pitch 2.74mm
Total Number of Contacts 9
Orientation Right Angle
Current Rating 5A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Rated Current (Signal) 5A
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Body/Shell Style PLUG
Max Current Rating 5A
Connector Style D-Sub
Number of Ports 1
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.318 (8.08mm)
Dimensions
Height 12.6mm
Length 30.8mm
Width 18.3mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
