622-009-260-032
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

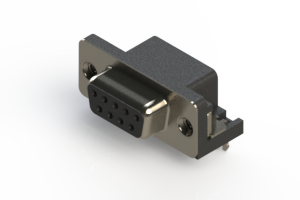

CONN D-SUB RCPT 9POS R/A SOLDER
PDF
/
Inventory: 2521
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2010
Series 622
Feature Board Lock, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Black
Number of Rows 2
Contact Type Signal
Current Rating 5A
Contact Finish Gold
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.318 (8.08mm)
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
