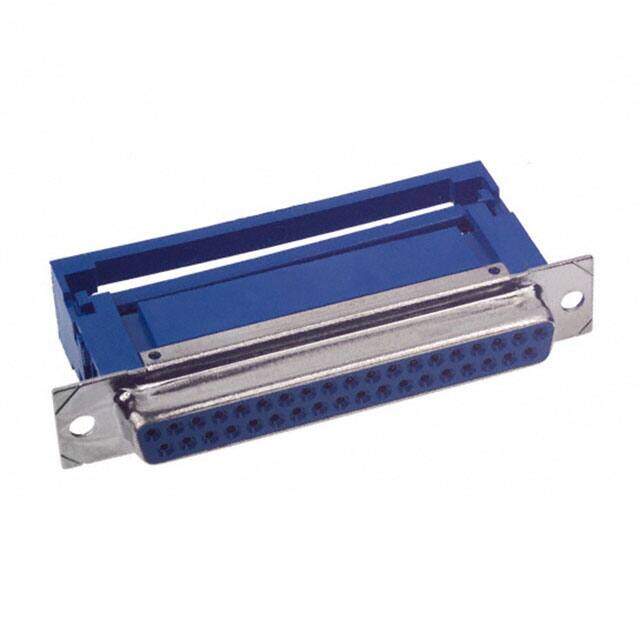

CWR-281-37-0203 image
Favorite
CWR-281-37-0203 image
Favorite

CWR-281-37-0203

CW Industries
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB PLUG 37POS STR IDC
PDF
/
Buying Options
Total Price: USD $12.94
Unit Price: USD $12.9448
≥1 USD $12.9448
≥10 USD $11.47344
≥100 USD $11.032384
≥500 USD $10.590976
≥1000 USD $10.00252
≥3000 USD $9.119968
Inventory: 680
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Material Phosphor Bronze
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Thermoplastic
Shell Material, Finish Steel, Tin Plated

Technical

Packaging Bulk
Published 2002
Series CWR
Feature Feed Through, Shielded, Strain Relief
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, Ribbon Cable
Connector Type Plug, Female Sockets
Number of Positions 37
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Blue
Number of Rows 2
Subcategory D Type Connectors
Contact Type Signal
Total Number of Contacts 37
Current Rating 1A
Reference Standard UL
Contact Finish Tin
Reliability COMMERCIAL
Body Breadth 0.49 inch
Rated Current (Signal) 1A
Wire Gauge 28-30 AWG
Flange Feature Housing/Shell (Unthreaded)
Mating Contact Pitch 0.108 inch
Dielectric Withstanding Voltage 500VDC V
Connector Style D-Sub
Mating Contact Row Spacing 0.11 inch
Shell Size, Connector Layout 4 DC C
Contact Design PREASSEM CONN

Dimensions

Height 26mm
Length 69.6mm
Width 12.5mm
Contact Finish Thickness 100.0μin 2.54μm
Plating Thickness 100μin

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
