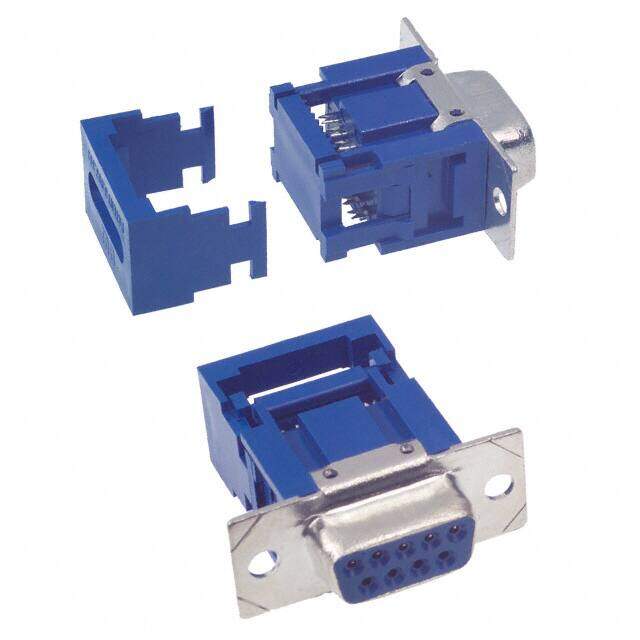

CWR-281-09-0203 image
Favorite
CWR-281-09-0203 image
Favorite

CWR-281-09-0203

CW Industries
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB PLUG 9POS STR IDC
PDF
/
Buying Options
Total Price: USD $12.32
Unit Price: USD $12.32
≥1 USD $12.32
≥10 USD $10.91904
≥100 USD $10.499104
≥500 USD $10.078992
≥1000 USD $9.519048
≥3000 USD $8.67915
Inventory: 1216
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Plating Thickness 100μin
Contact Finish Thickness 100.0μin 2.54μm
Width 12.5mm
Length 31.1mm
Height 26mm

Technical

Contact Design PREASSEM CONN
Shell Size, Connector Layout 1 DE E
Mating Contact Row Spacing 0.11 inch
Connector Style D-Sub
Dielectric Withstanding Voltage 500VDC V
Mating Contact Pitch 0.108 inch
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 28-30 AWG
Rated Current (Signal) 1A
Reliability COMMERCIAL
Contact Finish Tin
Reference Standard UL
Current Rating 1A
Total Number of Contacts 9
Contact Type Signal
Subcategory D Type Connectors
Number of Rows 2
Color Blue
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 9
Connector Type Plug, Female Sockets
Termination IDC, Ribbon Cable
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Shielded, Strain Relief
Series CWR
Published 2002
Packaging Bulk

Physical

Shell Material, Finish Steel, Tin Plated
Dielectric Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 10 Weeks
