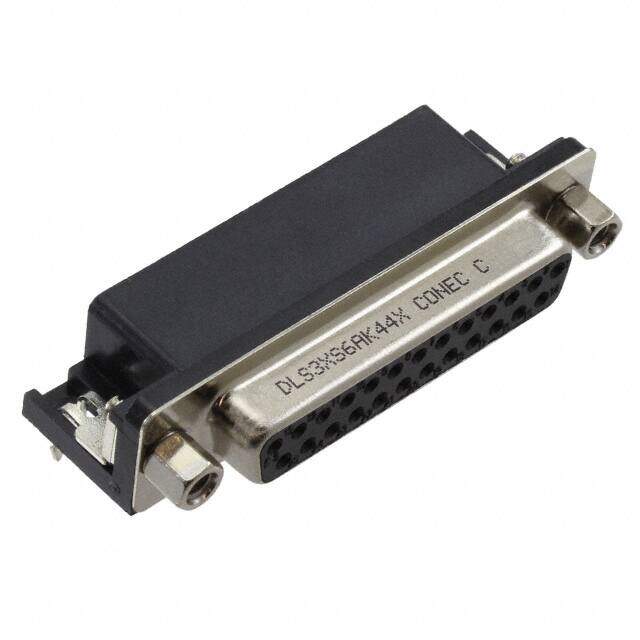

DLS3XS6AK44X
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 25POS R/A SOLDER
PDF
/
Buying Options
Total Price: USD $3.81
Unit Price: USD $3.80516
≥1 USD $3.80516
≥10 USD $3.58977
≥100 USD $3.38658
≥500 USD $3.19489
Inventory: 217
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Technical
Shell Size, Connector Layout 3 DB B
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Plating Tin
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 3000000000Ohm
Contact Resistance 15mOhm
Rated Current (Signal) 3A
Body Depth 0.581 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 3A
Total Number of Contacts 25
Pitch 2.77mm
Contact Type Signal
Subcategory D Type Connectors
Voltage - Rated 250V
Number of Rows 2
Number of Positions 25
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Board Lock
Published 2013
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel
Insulation Material Thermoplastic
Mounting Type Board Edge, Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
