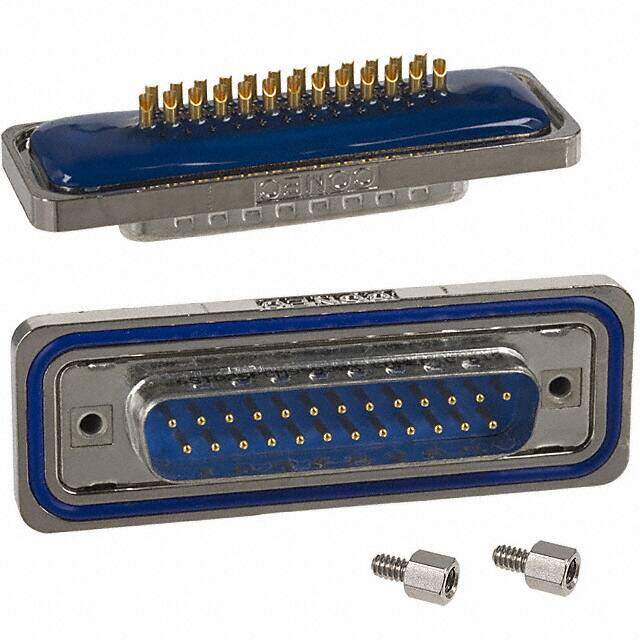

6STD25PCM99B30X image
Favorite
6STD25PCM99B30X image
Favorite

6STD25PCM99B30X

Conec
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB PLUG 25POS PNL MNT
PDF
/
Inventory: 2312
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Copper Alloy
Mount Panel
Mounting Type Panel Mount
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material PBT
Shell Material, Finish Copper Alloy, Tin Plated

Technical

Operating Temperature -25°C~105°C
Packaging Tray
Published 2006
Pbfree Code yes
Part Status Active
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 25
Color Black
Number of Rows 2
Gender Male
Subcategory D Type Connectors
Contact Type Signal
Total Number of Contacts 25
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Shell Finish TIN
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Breadth 0.831 inch
Wire Gauge 20 AWG
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Wire/Cable Gauge 20 AWG
Contact Form Machined
Shell Size, Connector Layout 3 DB B
Contact Design PREASSEM CONN

Dimensions

Length 61.4mm
Width 21.1mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
