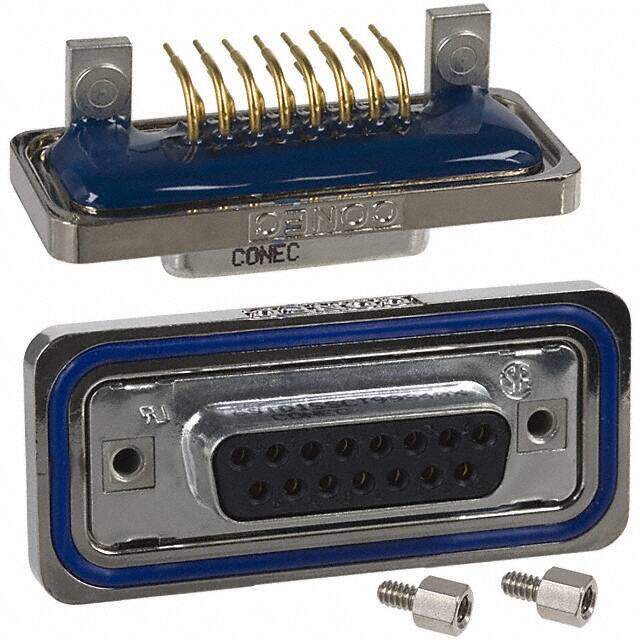

6STD15SCT99S40X

Conec
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB RCPT 15POS R/A SOLDER
PDF
/
Inventory: 3525
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Length 47.7mm
Height 21.1mm

Technical

Backset Spacing 0.189 (4.80mm)
Shell Size, Connector Layout 2 DA A
Connector Style D-Sub
Flange Feature Mating Side, Female Screwlock (4-40)
Body Depth 0.531 inch
Body Breadth 0.831 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Shell Finish TIN
Current Rating 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Total Number of Contacts 15
Contact Type Signal
Subcategory D Type Connectors
Gender Female
Number of Rows 2
Color Black
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Board Lock, Mounting Brackets
Published 2006
Packaging Tray
Operating Temperature -25°C~105°C

Physical

Shell Material, Finish Copper Alloy, Tin Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
