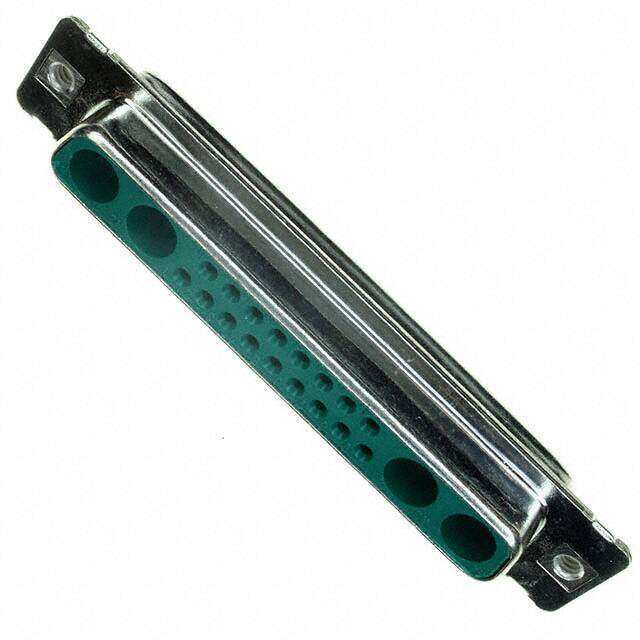

321WA4SCM99A30X
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 21P STR SLDR CUP
PDF
/
Inventory: 4465
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Width 12.9mm
Length 69.7mm
Height 12.4mm
Technical
Shell Size, Connector Layout 4 DC C - 21WA4
Wire/Cable Gauge 20 AWG
Durability 500 Cycles
Connector Style D-Sub, Combo
Plating Tin
Flange Feature Housing/Shell (4-40)
Body Breadth 0.509 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Current Rating 5A
Total Number of Contacts 21
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Subcategory D Type Connectors
Gender Female
Number of Rows 2
Color Green
Number of Positions 21 (17 + 4 Coax or Power)
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Part Status Active
Pbfree Code yes
Published 2006
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Shell Material Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material COPPER ALLOY
