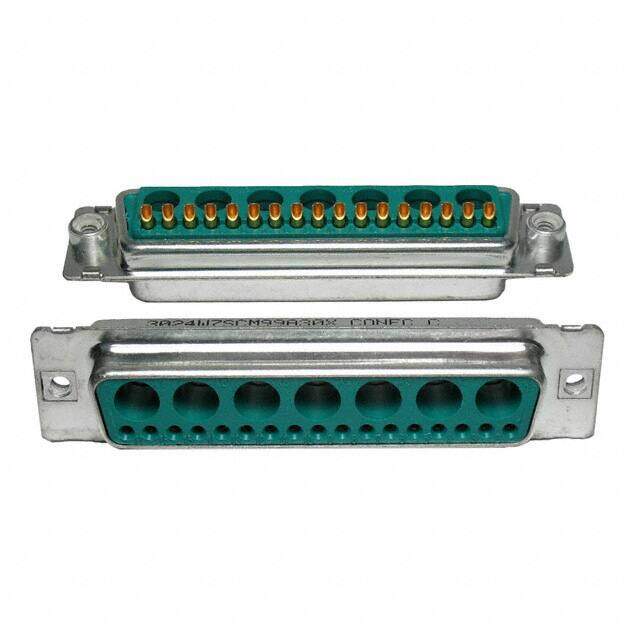

3024W7SCM99A30X image
Favorite
3024W7SCM99A30X image
Favorite

3024W7SCM99A30X

Conec
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB RCPT 24P STR SLDR CUP
PDF
/
Inventory: 6214
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Width 15.8mm
Length 67.3mm
Height 12.4mm

Technical

Shell Size, Connector Layout 5 DD D - 24W7
Wire/Cable Gauge 20 AWG
Connector Style D-Sub, Combo
Plating Tin
Flange Feature Cable Side (4-40)
Wire Gauge 20 AWG
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Shell Finish TIN
Current Rating 5A
Total Number of Contacts 24
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Subcategory D Type Connectors
Gender Female
Number of Rows 2
Color Green
Number of Positions 24 (17 + 7 Coax or Power)
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Part Status Active
Pbfree Code yes
Published 2003
Packaging Tray
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Tin Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Shell Material Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy
