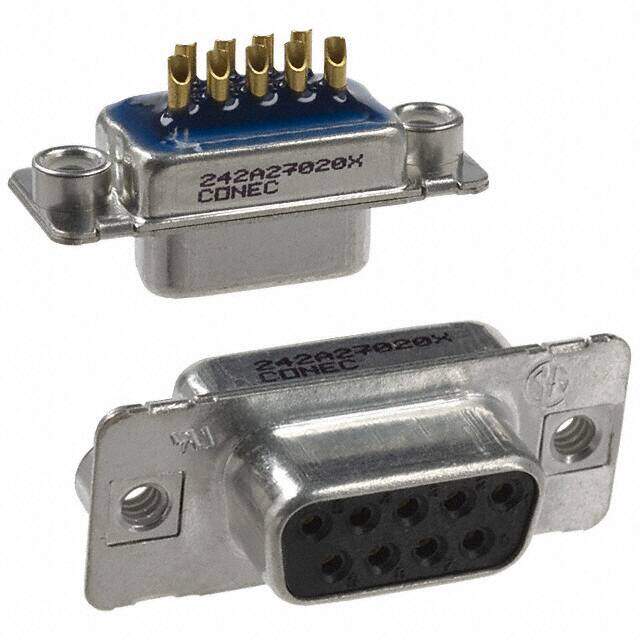

242A27020X
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB RCPT 9POS STR SLDR CUP
PDF
/
Inventory: 2859
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Width 12.9mm
Length 31.19mm
Technical
Max Supply Voltage (DC) 100V
Contact Design PREASSEM CONN
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Wire/Cable Gauge 20 AWG
Durability 50 Cycles
Number of Ports 1
Connector Style D-Sub
Dielectric Withstanding Voltage 300VDC V
Plating Tin
Flange Feature Cable Side (4-40)
Wire Gauge 20 AWG
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL, CSA
Shell Finish TIN
Current Rating 5A
Depth 16.7mm
Ingress Protection IP20
Orientation Straight
Total Number of Contacts 9
Current Rating (Amps) 7.5A
Contact Type Signal
Filter Feature YES
Subcategory D Type Connectors
Additional Feature ROHS COMPLIANT
Gender Female
Number of Rows 2
Color Black
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Number of Terminations 9
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Filter
Series 242A
Published 2009
Packaging Tray
Operating Temperature -25°C~105°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material PBT
Dielectric Material Thermoplastic
Shell Material Brass
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
