164A16669X
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

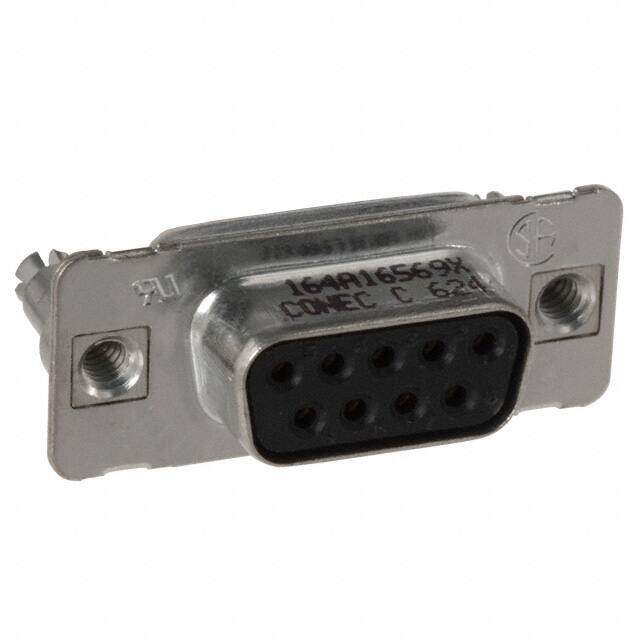

Conn D-Subminiature SKT 9 POS Solder ST Thru-Hole 9 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $8.18
Unit Price: USD $8.1752
≥1 USD $8.1752
≥10 USD $7.35944
≥100 USD $6.93264
≥500 USD $6.75488
≥1000 USD $6.57712
≥3000 USD $5.86608
Inventory: 688
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Polyester
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series 164A
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Black
Number of Rows 2
Gender Female
Additional Feature WITH THD LOCK, SPACER CLIP
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 9
Orientation Straight
Ingress Protection IP20
Depth 12.93mm
Current Rating 7.5A
Shell Finish TIN
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Rated Current (Signal) 5A
Insulation Resistance 5000000000Ohm
Flange Feature Mating Side (4-40)
Max Supply Voltage 125V
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Dimensions
Length 31.19mm
Contact Finish Thickness 8.00μin 0.203μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
