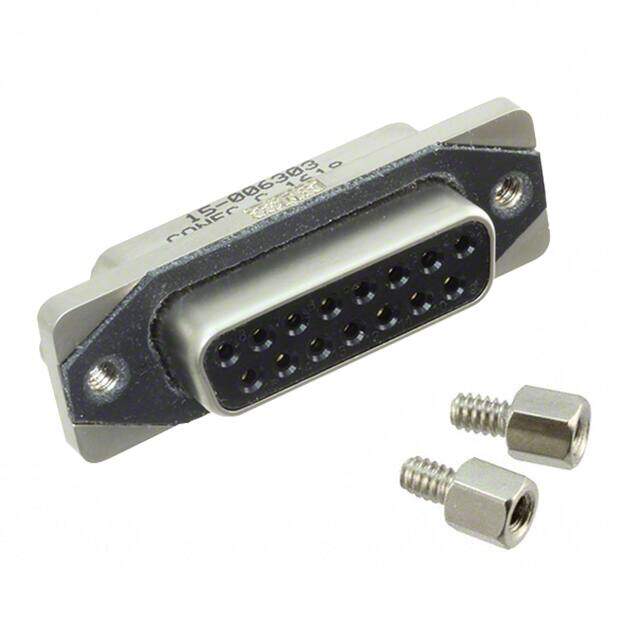

15-006303
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 15POS PNL MNT
PDF
/
Buying Options
Total Price: USD $12.83
Unit Price: USD $12.8304
≥1 USD $12.8304
Inventory: 16
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Technical
Shell Size, Connector Layout 2 DA A
Connector Style D-Sub
Flange Feature Cable Side (4-40); Mating Side, Female Screwlock (4-40)
Wire Gauge 20 AWG
Contact Finish Gold
Current Rating 7.5A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 7.5A
Contact Type Signal
Voltage - Rated 125V
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Gasket
Series SlimCon
Published 2015
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Shell Material, Finish Zinc Die Cast, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Number of Pins 15
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
