15-002253
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

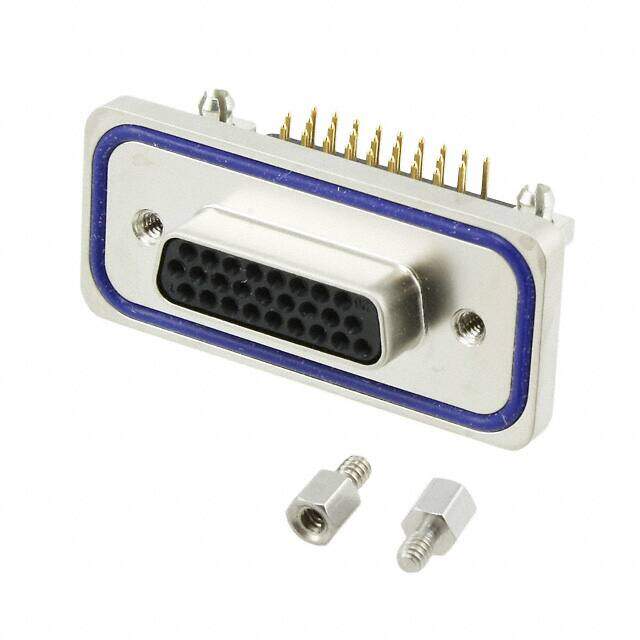

CONN DSUB HD RCPT 26POS R/A SLDR
PDF
/
Buying Options
Total Price: USD $38.46
Unit Price: USD $38.456893
≥1 USD $38.456893
≥10 USD $36.280091
≥100 USD $34.226501
≥500 USD $32.289153
≥1000 USD $30.46146
Inventory: 9325
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Panel, Through Hole
Mounting Type Board Edge, Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material PBT
Shell Material, Finish Zinc Die Cast, Nickel Plated
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2009
JESD-609 Code e3
Feature Board Lock, Mounting Brackets
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 26
Color Black
Number of Rows 3
Gender Female
Voltage - Rated 60V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 26
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 3A
Number of Conductors ONE
Contact Finish Gold
Body Length or Diameter 47.7 inch
Number Of PCB Rows 3
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 21.1 inch
Empty Shell NO
Body Depth 14.28 inch
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub, High Density
PCB Contact Row Spacing 2.54 mm
Shell Size, Connector Layout 2 DA A High Density
Contact Design MACHINED
Backset Spacing 0.220 (5.60mm)
Dimensions
Contact Finish Thickness 8.00μin 0.203μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
