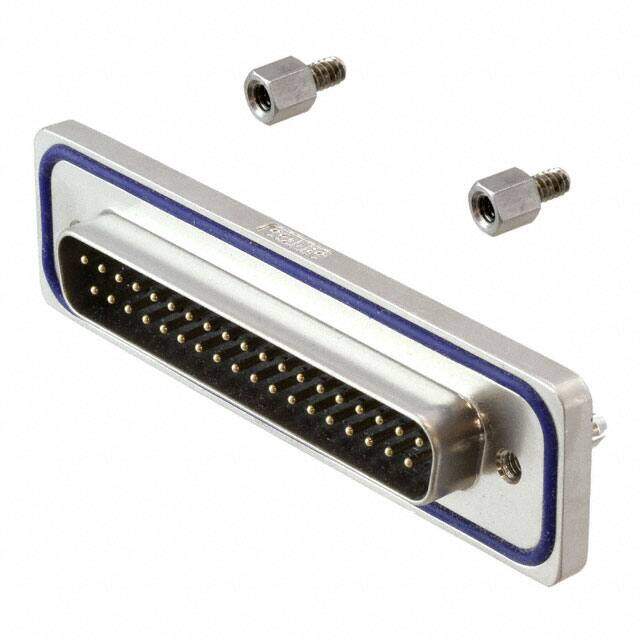

15-000443
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 37P PNL MNT SLDR
PDF
/
Buying Options
Total Price: USD $25.78
Unit Price: USD $25.784
≥1 USD $25.784
≥10 USD $22.57684
≥100 USD $20.90462
≥500 USD $20.207792
≥1000 USD $19.09285
Inventory: 101
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 8μin
Contact Finish Thickness 8.00μin 0.203μm
Technical
Shell Size, Connector Layout 4 DC C
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VDC V
Mating Contact Pitch 0.108 inch
Flange Feature Mating Side, Female Screwlock (4-40)
Contact Resistance 10mOhm
Body Depth 0.339 inch
Body Breadth 0.831 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Body Length or Diameter 3.071 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Shell Finish NICKEL OVER COPPER
Current Rating 7.5A
Ingress Protection IP67 - Dust Tight, Waterproof
Total Number of Contacts 37
Contact Type Signal
Subcategory D Type Connectors
Voltage - Rated 125V
Gender Male
Number of Rows 2
Color Black
Number of Positions 37
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Published 2009
Packaging Bulk
Operating Temperature -25°C~105°C
Physical
Shell Material, Finish Zinc Die Cast, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Panel Mount, Through Hole
Mount Panel, Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
