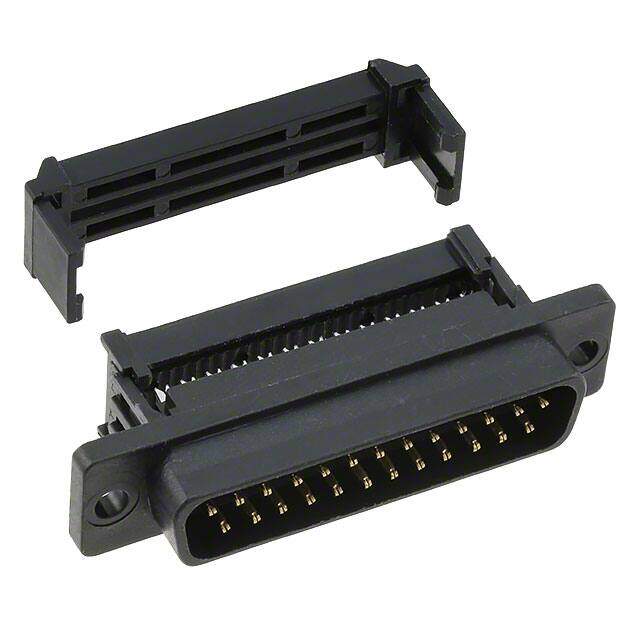

A-DSF 25LPIII/FP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
QUALITY CLASS III D-Sub Connector
PDF
/
Buying Options
Total Price: USD $4.1
Unit Price: USD $4.096028
≥1 USD $4.096028
≥10 USD $3.864178
≥100 USD $3.645451
≥500 USD $3.439104
≥1000 USD $3.244434
Inventory: 5783
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Option 2 LOCKING
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2006
Feature Feed Through, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, Ribbon Cable
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 25
Color Black
Number of Rows 2
Voltage - Rated 250V
Additional Feature QUALITY CLASS III
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Type Signal
Current Rating (Amps) 3A
Total Number of Contacts 25
Reference Standard UL,VDE
Reliability COMMERCIAL
Body Breadth 0.488 inch
Body Depth 0.331 inch
Wire Gauge 26-28 AWG
Insulation Resistance 1000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
Mating Contact Pitch 0.109 inch
Body/Shell Style RECEPTACLE
Dielectric Withstanding Voltage 500VAC V
Connector Style D-Sub
Shell Size, Connector Layout 3 DB B
Contact Design PREASSEM CONN
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
