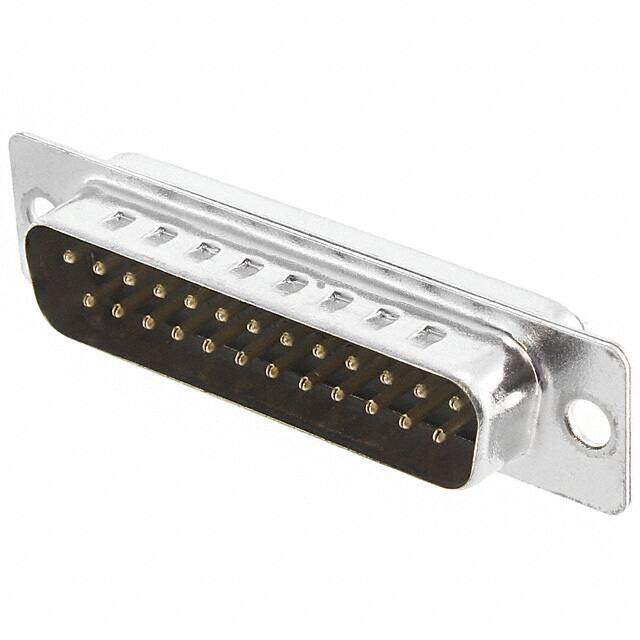

A-DS 25 LL/Z image
Favorite
A-DS 25 LL/Z image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB PLUG 25P SLDR CUP
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.61776
≥100 USD $0.564256
≥500 USD $0.531168
≥1000 USD $0.508992
≥3000 USD $0.464746
Inventory: 659
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash

Technical

Shell Size, Connector Layout 3 DB B
Connector Style D-Sub
Dielectric Withstanding Voltage 1400VAC V
Mating Contact Pitch 0.109 inch
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 1000000000Ohm
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.494 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Shell Finish TIN
Total Number of Contacts 25
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory D Type Connectors
Additional Feature QUALITY CLASS III
Voltage - Rated 250V
Number of Rows 2
Color White
Number of Positions 25
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Grounding Indents
JESD-609 Code e4
Published 2012
Packaging Tray
Operating Temperature -55°C~105°C

Physical

Mounting Option 2 LOCKING
Shell Material, Finish Steel
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Insulation Material POLYAMIDE
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 23 Weeks
