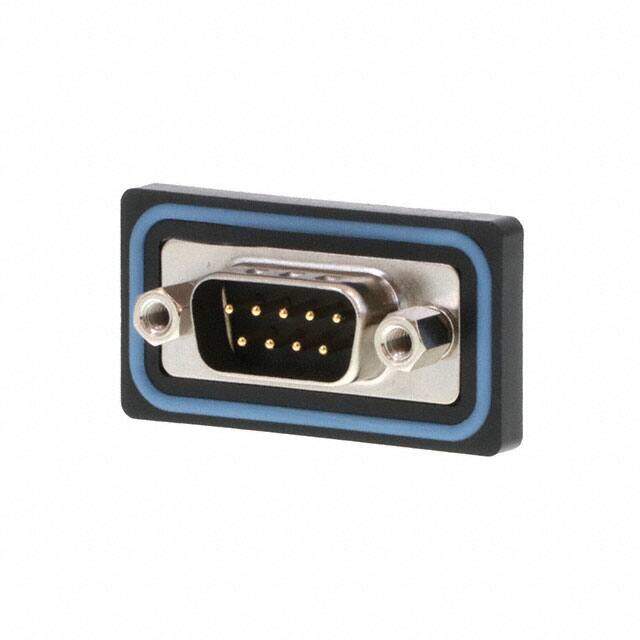

SDB-09PMMS-SL8001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONNECTOR, D SUB, PLUG, 9 POSITION; Product Range:LTWSDB Series; D Sub Shell Size:DE; Gender:Plug; No. of Contacts:9; Connector Body Material:Steel Body; Contact Termination Type:Solder; Connector Type:D Sub ;RoHS Compliant: Yes
PDF
/
Buying Options
Total Price: USD $7.77
Unit Price: USD $7.7704
≥1 USD $7.7704
≥10 USD $6.9916
≥100 USD $6.58592
≥500 USD $6.41711
≥1000 USD $6.24829
≥3000 USD $5.572785
Inventory: 747
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Alloy
Mount Termination
Mounting Type Panel Mount
Dielectric Material Polybutylene Terephthalate (PBT)
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2010
Feature Grounding Indents, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 9
Color Black
Number of Rows 2
Gender Male
Contact Type Signal
Current Rating (Amps) 5A
Ingress Protection IP68 - Dust Tight, Waterproof
Reach Compliance Code unknown
Contact Finish Gold
Wire Gauge 22-26 AWG
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Shell Size, Connector Layout 1 DE E
Compliance
RoHS Status RoHS Compliant
