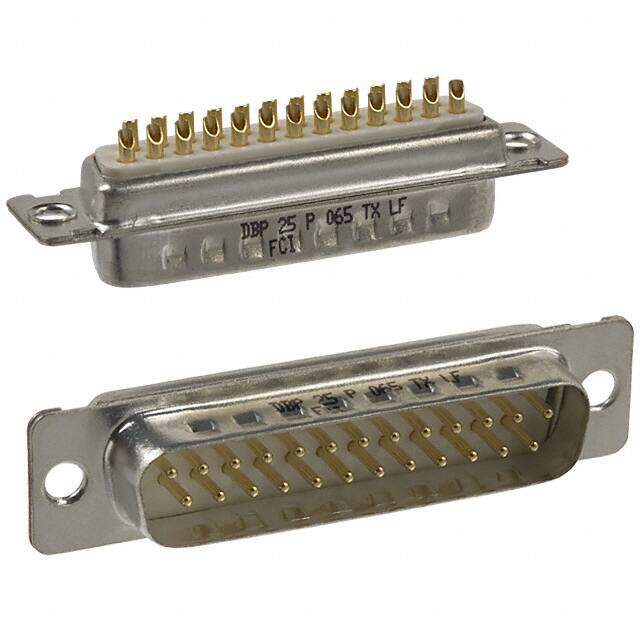

DBP25P065TXLF image
Favorite
DBP25P065TXLF image
Favorite

DBP25P065TXLF

Amphenol ICC (FCI)
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB PLUG 25P STR SLDR CUP
PDF
/
Buying Options
Total Price: USD $12.26
Unit Price: USD $12.264109
≥1 USD $12.264109
≥10 USD $11.569908
≥100 USD $10.915014
≥500 USD $10.297179
≥1000 USD $9.714324
Inventory: 922
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Thermoplastic
Housing Material Thermoplastic
Shell Material, Finish Steel, Tin Plated

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Published 2010
Series DP
Feature Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 25
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Number of Rows 2
Gender Male
Voltage - Rated 300V
Contact Type Signal
Current Rating (Amps) 7.5A
Pitch 2.76mm
Orientation Straight
Depth 14.25mm
Current Rating 7.5A
Contact Finish Gold, GXT?
Flange Feature Housing/Shell (Unthreaded)
Max Voltage Rating (AC) 1kV
Connector Style D-Sub
Number of Ports 1
Shell Size, Connector Layout 3 DB B
Max Supply Voltage (AC) 1kV

Dimensions

Length 52.65mm
Contact Finish Thickness 30.0μin 0.76μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
