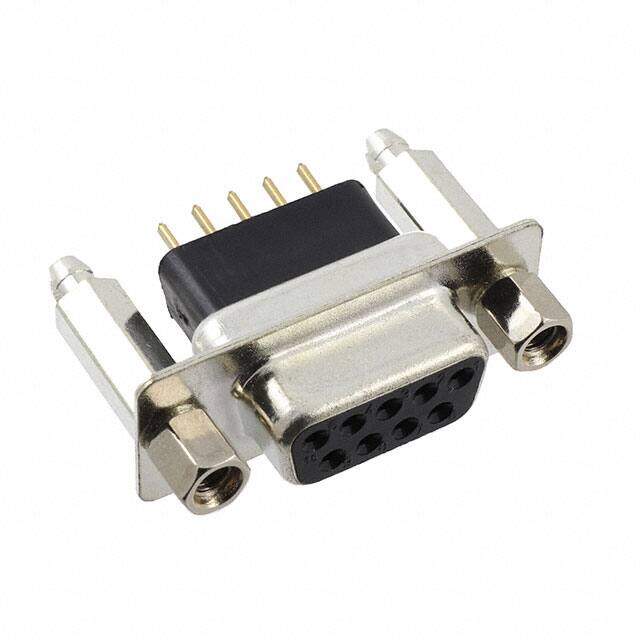

DE09-SE-1-BL-JS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-SUB HI PROFILE PCB 9 WAY SOCKE
PDF
/
Buying Options
Total Price: USD $2.63
Unit Price: USD $2.6312
≥1 USD $2.6312
≥10 USD $2.38656
≥100 USD $2.260896
≥500 USD $2.208272
≥1000 USD $2.103112
≥3000 USD $1.840186
Inventory: 2374
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Dielectric Material Thermoplastic
Shell Material, Finish Steel, Tin Plated
Mounting Option 2 JACKSCREW
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Series DSE
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Black
Number of Rows 2
Voltage - Rated 250VAC
Additional Feature ROHS COMPLIANT
Subcategory D Type Connectors
Current Rating (Amps) 3A
Total Number of Contacts 9
Shell Finish TIN
Reference Standard UL, CSA
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Contact Style RND PIN-SKT
Insulation Resistance 1000000000Ohm
Flange Feature Board Side (4-40); Mating Side, Female Screwlock (4-40)
Body/Shell Style PLUG
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Contact Pattern STAGGERED
Shell Size, Connector Layout 1 DE E
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
