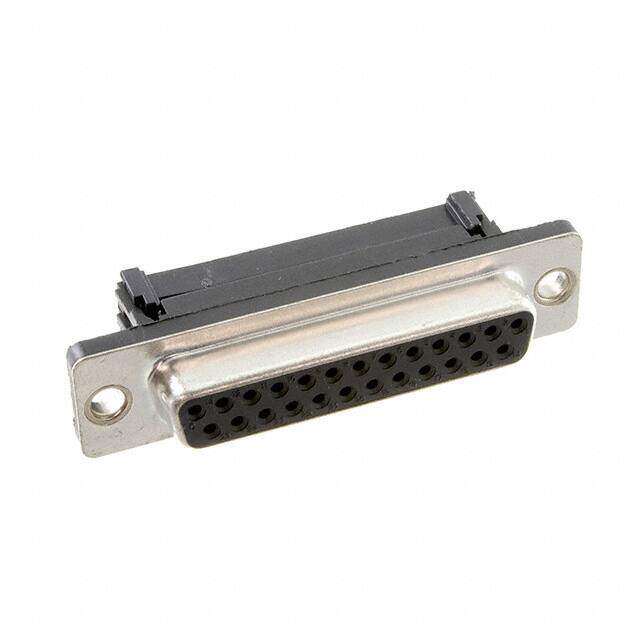

DB25-SF-M1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors 25P FEMALE IDC FLAT CABLE
PDF
/
Buying Options
Total Price: USD $2.28
Unit Price: USD $2.2792
≥1 USD $2.2792
≥10 USD $1.9844
≥100 USD $1.899744
≥500 USD $1.85753
≥1000 USD $1.7732
≥3000 USD $1.604275
Inventory: 1020
Minimum: 1
-
+
Technical Details
Technical
Subcategory D Type Connectors
Current Rating (Amps) 5A
Total Number of Contacts 25
Shell Finish TIN
Reference Standard UL, CSA
Contact Finish Gold
Reliability COMMERCIAL
Body Breadth 0.494 inch
Contact Style RND PIN-SKT
Wire Gauge 28-30 AWG
Insulation Resistance 1000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
Mating Contact Pitch 0.109 inch
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Contact Pattern STAGGERED
Shell Size, Connector Layout 3 DB B
Contact Design PREASSEM CONN
Additional Feature ROHS COMPLIANT
Voltage - Rated 250VAC
Gender Female
Number of Rows 2
Color Black
Number of Positions 25
Connector Type Receptacle, Female Sockets
Termination IDC, Ribbon Cable
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DSF
Packaging Tray
Operating Temperature -65°C~125°C
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Mounting Option 2 LOCKING
Shell Material, Finish Steel, Tin Plated
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Type Free Hanging (In-Line)
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 9 Weeks
