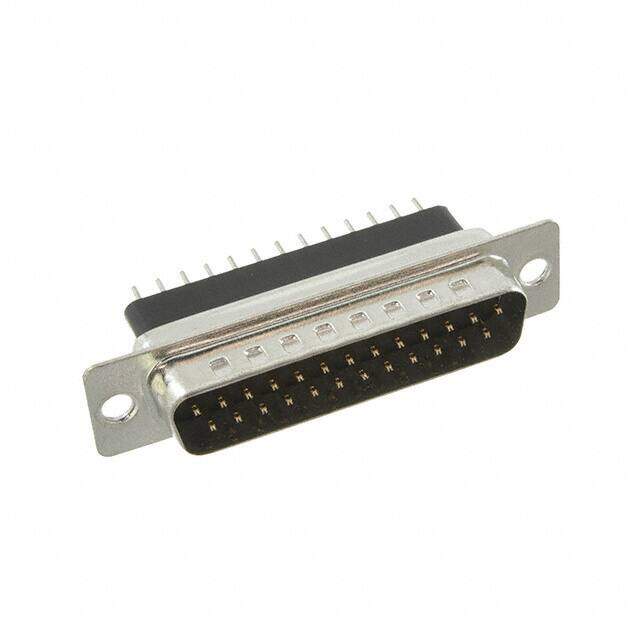

DB25-PE-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Connector
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.54
≥1 USD $1.54
≥10 USD $1.33672
≥100 USD $1.279872
≥500 USD $1.25136
≥1000 USD $1.1946
≥3000 USD $1.08079
Inventory: 81
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Option 1 LOCKING
Shell Material, Finish Steel, Tin Plated
Mounting Option 2 BOARDLOCK
Technical
Operating Temperature -65°C~125°C
Packaging Tray
Series DPE
Feature Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 25
Color Black
Number of Rows 2
Voltage - Rated 250VAC
Subcategory D Type Connectors
Current Rating (Amps) 3A
Total Number of Contacts 25
Reference Standard UL, CSA
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.494 inch
Body Depth 0.464 inch
Contact Style RND PIN-SKT
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
Mating Contact Pitch 0.109 inch
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Contact Pattern STAGGERED
Shell Size, Connector Layout 3 DB B
Dimensions
Contact Finish Thickness Flash
Length - Termination 0.189 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
