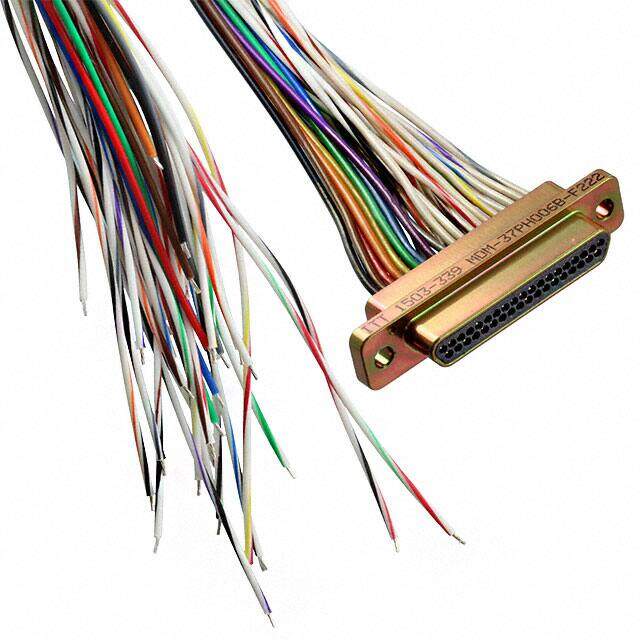

MDM-37PH006B-F222
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / D-Sub Cables
Description
Cable Assembly RG178/U 0.914m 26AWG 37POS Micro D-Sub PIN
PDF
/
Buying Options
Total Price: USD $302.28
Unit Price: USD $302.28
≥1 USD $302.28
≥10 USD $280.10928
≥100 USD $270.033632
Inventory: 70
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material COPPER ALLOY
Mount Free Hanging
Shell Material ALUMINUM ALLOY
Housing Material Polymer
Technical
Packaging Bulk
Published 2006
Series 83513-Style Micro D Metal Shell (MDM)
JESD-609 Code e4
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Wire Leads
ECCN Code EAR99
Connector Type D-Sub, Plug, Signal
Type D-Type, Micro-D
Number of Positions 37
Max Operating Temperature 200°C
Min Operating Temperature -55°C
Color Multiple, Individual
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Total Number of Contacts 37
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Breadth 0.308 inch
Body Depth 0.106 inch
Rated Current (Signal) 3A
Contact Style Pin
Contact Resistance 8mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.05 inch
Body/Shell Style RECEPTACLE
Dielectric Withstanding Voltage 900VAC V
Cable Length 914mm
Contact Pattern STAGGERED
Withdrawl Force-Min .139 N
1st Connector Plug, Male Pins
2nd Connector Individual Wire Leads
Contact Design PREASSEM CONN
Dimensions
Length 3.00' 914.40mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
