MDM-15SL1B-A174
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / D-Sub Cables
Description

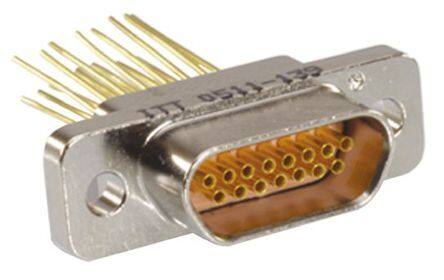

ITT Cannon MDM Series 0.05in Pitch 15 Way Straight Panel Mount Female Wire Wrap D-sub Connector, 3A
PDF
/
Inventory: 3172
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Number of Contacts 15
Body Breadth 0.308 inch
Rated Current (Signal) 3A
Contact Style Socket
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Body/Shell Style RECEPTACLE
Termination Type WIRE
Dielectric Withstanding Voltage 900VAC V
Contact Pattern STAGGERED
Insertion Force-Max 2.224 N
Withdrawl Force-Min .139 N
Mating Contact Row Spacing 0.043 inch
Contact Design PREASSEM CONN
Wire Size (Min) 25 AWG
Wire Size (Max) 25 AWG
Reliability COMMERCIAL
Reference Standard UL
Shell Finish NICKEL
Current Rating 3A
Depth 10.09mm
Orientation Straight
Pitch 1.27mm
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Female
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 125°C
ECCN Code EAR99
Part Status Active
JESD-609 Code e4
Published 2000
Dimensions
Length 23.75mm
Width 7.82mm
Compliance
RoHS Status RoHS Compliant
Physical
Housing Material Aluminium
Shell Material ALUMINUM ALLOY
Mount Panel
Contact Plating Gold
Contact Material COPPER ALLOY
Supply Chain
Factory Lead Time 15 Weeks
Alternative Model
