MDM-15PH003B
RoHS
/
Package /
Category Cable Assemblies / D-Sub Cables
Description

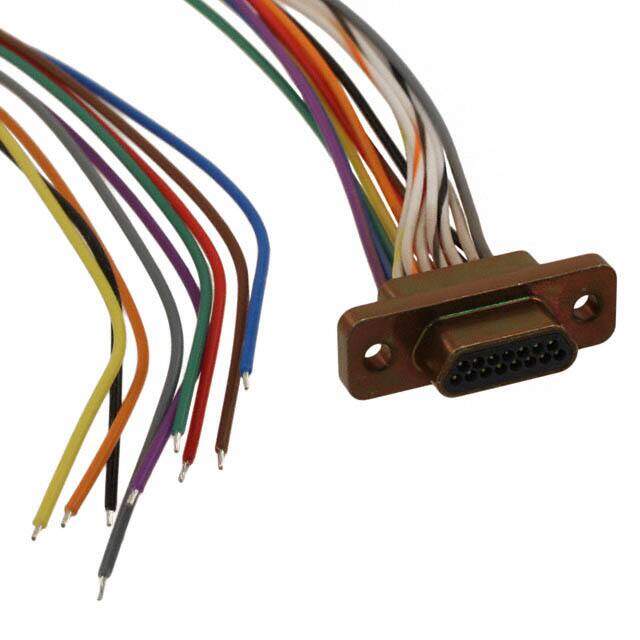

Cable Assembly Hook-up Wire 0.457m 26AWG Micro D-Sub 15 POS PIN Crimp
PDF
/
Buying Options
Total Price: USD $69.81
Unit Price: USD $69.80505
≥1 USD $69.80505
≥10 USD $57.2755
≥100 USD $55.4857
≥500 USD $53.6959
≥1000 USD $51.9061
Inventory: 36
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Dimensions
Length 1.50' 457.20mm
Technical
Contact Design PREASSEM CONN
Connector Type B Wire Leads
Connector Type A D-Sub, Receptacle
2nd Connector Individual Wire Leads
1st Connector Receptacle, Male Pins
Mating Contact Row Spacing 0.1 inch
Withdrawl Force-Min .139 N
Insertion Force-Max 2.224 N
Contact Pattern STAGGERED
Wire/Cable Gauge 26 AWG
Durability 500 Cycles
Cable Length 457mm
Dielectric Withstanding Voltage 600VAC V
Max Current Rating 3A
Shell Size B
Body/Shell Style PLUG
Mating Contact Pitch 0.05 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 8mOhm
Contact Style Pin
Rated Current (Signal) 3A
Body Depth 0.23 inch
Empty Shell NO
Operating Temperature (Min) -55°C
Body Breadth 0.308 inch
Operating Temperature (Max) 125°C
Reliability COMMERCIAL
Contact Finish Gold
Shell Finish CADMIUM/YELLOW CHROMATE
Total Number of Contacts 15
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
Subcategory D Type Connectors
Gender Male
Number of Rows 2
Color Multiple, Individual
Number of Positions 15
Type D-Type, Micro-D
Connector Type D-Sub
Termination Crimp
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e4
Series MDM
Published 2007
Packaging Bulk
Physical
Mounting Option 2 LOCKING
Mounting Option 1 HOLE .087-.098
Shell Material ALUMINUM ALLOY
Insulation Material LIQUID CRYSTAL POLYMER
Contact Material COPPER ALLOY
