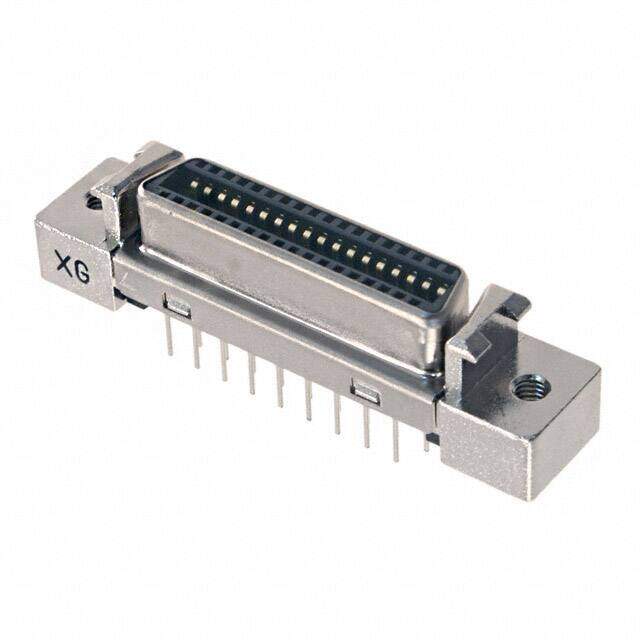

60110365102
RoHS
/
Package /
Category Connectors, Interconnects / D-Shaped Connectors - Centronics
Description
D-Sub Micro-D Connectors HAR.MIK HMIK BEL IO BOARD LATCH FEM
PDF
/
Inventory: 4010
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material NOT SPECIFIED
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Shell Material STEEL
Housing Material Thermoplastic
Technical
Series har-mik?
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Type SCSI
Number of Positions 36
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Number of Rows 2
Gender Female
Voltage - Rated 240V
Additional Feature PANEL MOUNTABLE
Subcategory Other Rectangular Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 36
Orientation Straight
Depth 9.2mm
Current Rating 1A
Shell Finish NICKEL
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
UL Flammability Code 94V-0
Empty Shell NO
Rated Current (Signal) 1A
Contact Resistance 30mOhm
Insulation Resistance 1000000000Ohm
Flange Feature Housing/Shell (M2.6)
Body/Shell Style PLUG
Dielectric Withstanding Voltage 750VAC V
Connector Style Outer Shroud Contacts
Contact Pattern RECTANGULAR
Contact Design PREASSEM CONN
Dimensions
Length 43.51mm
Width 11mm
Compliance
RoHS Status RoHS Compliant
