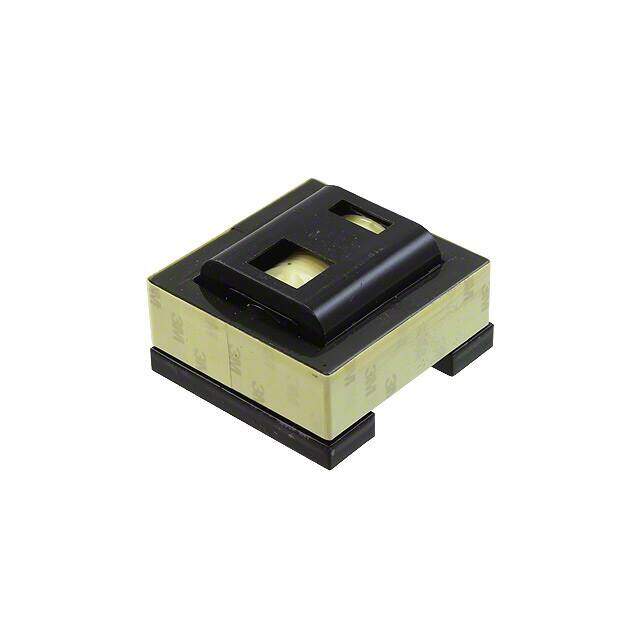

TCS-08
RoHS
/
Package /
Category Transformers / Current Sense Transformers
Description
TRANSFMR CRNT SENS 6A 1:125RATIO
PDF
/
Inventory: 6821
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 6.3mm
Length 7mm
Height Seated (Max) 0.205 5.20mm
Technical
Turns Ratio - Primary:Secondary 1:125
Frequency Range 250kHz Min
DC Resistance (DCR) 6mOhm Primary 7.7Ohm Secondary
Inductance 3mH
Termination Style Gull Wing
Frequency 250kHz
Current Rating 6A
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Invasive
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.276Lx0.331W 7.00mmx8.40mm
Series TCS
Published 2004
Packaging Tape & Reel (TR)
Physical
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
