56200C
RoHS
RoHS compliant
RoHS compliantPackage SIP
Category Transformers / Current Sense Transformers
Description

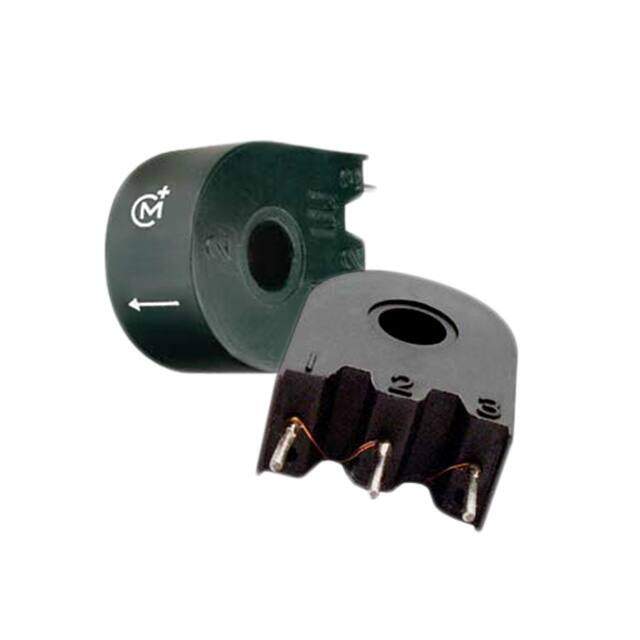

MURATA POWER SOLUTIONS 56200C Current Sensing Transformer, 200, 2.81 ohm, 150 mH, 10 A, Through Hole
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.63124
≥1 USD $0.63124
≥10 USD $0.59551
≥100 USD $0.5618
≥500 USD $0.53
≥1000 USD $0.5
≥3000 USD $0.4717
Inventory: 952
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Diameter - Inside 5 mm
Length 16.9mm
Height Seated (Max) 0.795 20.19mm
Height 20.19mm
Technical
Primary Current 10A
Current Ratio 200:1
Load Resistance 200Ohm
Turns Ratio - Primary:Secondary 1:200
Isolation Voltage 500V
Input Current 10A
Frequency Range 20kHz~200kHz
Lead/Base Style PC Pin
DC Resistance (DCR) 1.87mOhm Primary 2.81mOhm Secondary
Inductance 150 μH
Physical Dimension 16.9mm X 8.89mm X 20.19mm
Termination Style PC Pin
Frequency 200kHz
Current Rating 10A
Depth 8.89mm
Additional Feature HEIGHT DIMENSION INCLUDES TERMINAL ALSO
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Non-Invasive (Solid Core)
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.661Lx0.350W 16.79mmx8.89mm
Series 5600
Packaging Tube
Physical
Weight 0.013lb 5.70g
Number of Pins 3
Package / Case SIP
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
