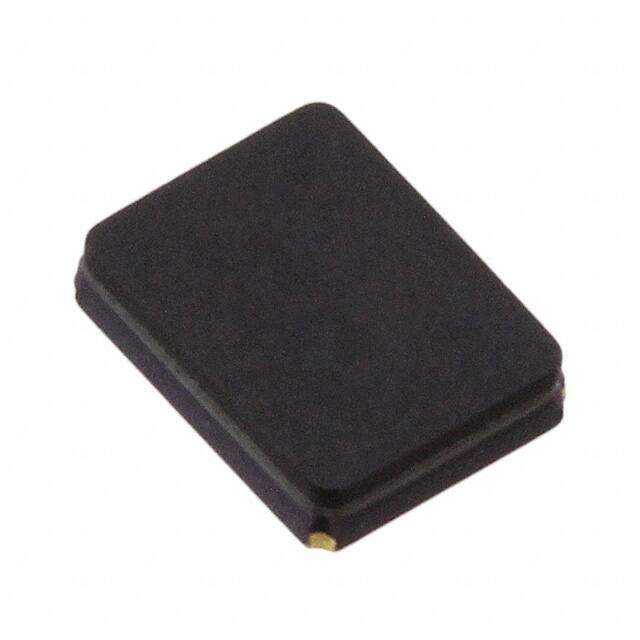

AV27070005
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Crystals
Description
CRYSTAL 27MHZ 8PF SMD
PDF
/
Inventory: 3225
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2015
Series AV
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type MHz Crystal
Frequency 27MHz
Frequency Stability ±20ppm
ESR (Equivalent Series Resistance) 60Ohm
Load Capacitance 8pF
Operating Mode Fundamental
Frequency Tolerance ±10ppm
Dimensions
Height 889μm
Height Seated (Max) 0.035 0.90mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
