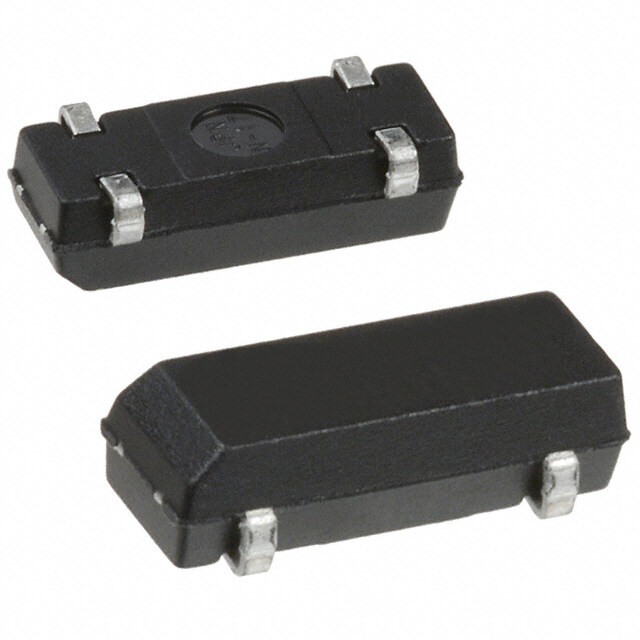

FSRLF327
RoHS
/
Package SMD/SMT
Category Crystals, Oscillators, Resonators / Crystals
Description
CRYSTAL 32.7680KHZ 12.5PF SMD
PDF
/
Buying Options
Total Price: USD $8.06
Unit Price: USD $8.05505
≥1 USD $8.05505
≥10 USD $6.60915
≥100 USD $6.403
≥500 USD $6.1959
≥1000 USD $5.98975
≥10000 USD $5.37035
Inventory: 1708
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 3.7084mm
Length 8.7mm
Height 2.4892mm
Technical
Series Resistance 50kOhm
Crystal/Resonator Type PARALLEL - FUNDAMENTAL
Drive Level 1 μW
Frequency Tolerance 0.002%
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 50kOhm
Operating Frequency 0.032768MHz
Frequency Stability 0.04 ppm
Frequency 32.768kHz
HTS Code 8541.60.00.10
Additional Feature TAPE AND REEL
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin/Copper (Sn/Cu)
Pbfree Code yes
JESD-609 Code e2
Tolerance 0.002%
Packaging Cut Tape
Physical
Number of Pins 2
Package / Case SMD/SMT
Mount Surface Mount
