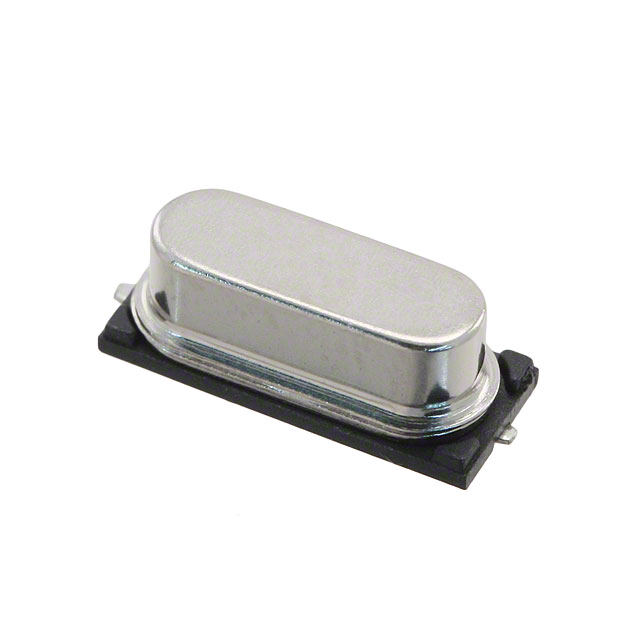

FOXSDLF/240F-20
RoHS
/
Package SMD/SMT
Category Crystals, Oscillators, Resonators / Crystals
Description
CRYSTAL 24.0000MHZ 20PF SMD
PDF
/
Buying Options
Total Price: USD $0.2
Unit Price: USD $0.200205
≥1 USD $0.200205
≥10 USD $0.188865
≥100 USD $0.178178
≥500 USD $0.168092
≥1000 USD $0.158582
Inventory: 3395
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 5mm
Length 11.7mm
Height 4.5mm
Technical
Series Resistance 30Ohm
Crystal/Resonator Type PARALLEL - FUNDAMENTAL
Drive Level 500 μW
Frequency Tolerance 0.003%
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 30Ohm
Operating Frequency 24MHz
Physical Dimension L11.7XB5.0XH4.5 (mm)/L0.461XB0.197XH0.177 (inch)
Frequency Stability 50 ppm
Frequency 24MHz
Depth 5mm
HTS Code 8541.60.00.60
Additional Feature TAPE AND REEL
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu) - hot dipped
Pbfree Code yes
JESD-609 Code e1
Tolerance 0.005%
Packaging Cut Tape
Physical
Number of Pins 2
Package / Case SMD/SMT
Mount Surface Mount
