FC5BACBEI12.0-T1
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Crystals
Description

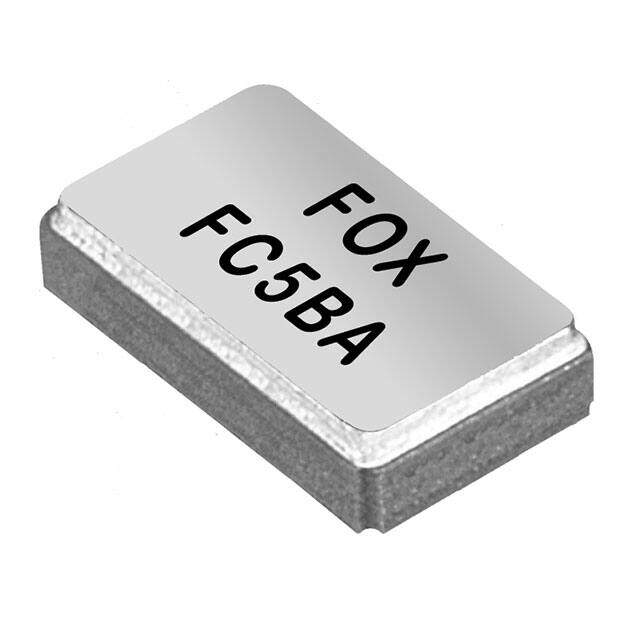

CRYSTAL 12MHZ 10PF SMD
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9416
≥1 USD $0.9416
≥10 USD $0.8316
≥100 USD $0.777744
≥500 USD $0.68728
≥1000 USD $0.65113
Inventory: 4050
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series C5BA
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type MHz Crystal
Frequency 12MHz
Frequency Stability ±50ppm
ESR (Equivalent Series Resistance) 90Ohm
Load Capacitance 10pF
Operating Mode Fundamental
Frequency Tolerance ±30ppm
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
