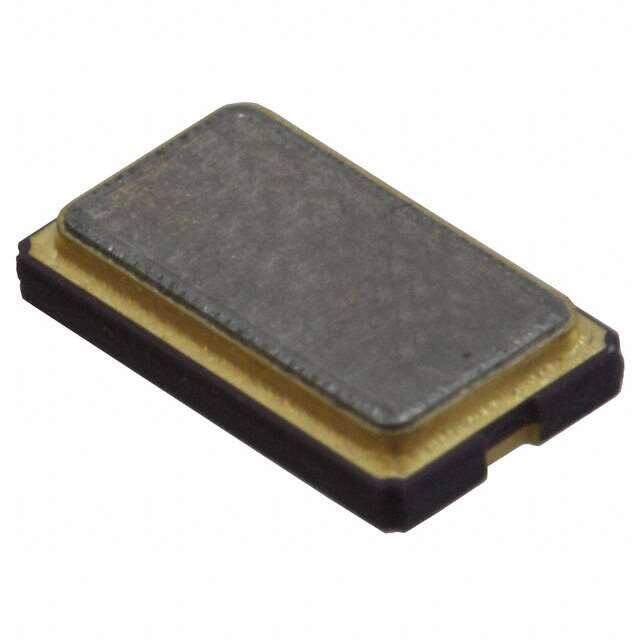

ECS-120-18-23A-JGN-TR
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Crystals, Oscillators, Resonators / Crystals
Description
CRYSTAL 12.000 MHZ 18PF SMD
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.874064
≥1 USD $0.874064
≥10 USD $0.824582
≥100 USD $0.77791
≥500 USD $0.733881
≥1000 USD $0.692334
Inventory: 1194
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2016
Series ECX-64A
Size / Dimension 0.236Lx0.138W 6.00mmx3.50mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type MHz Crystal
Additional Feature TR
Frequency 12MHz
Frequency Stability ±30ppm
Physical Dimension L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)
Operating Frequency 12MHz
ESR (Equivalent Series Resistance) 80Ohm
Load Capacitance 18pF
Operating Mode Fundamental
Frequency Tolerance ±20ppm
Drive Level 100 μW
Dimensions
Height 1.0922mm
Height Seated (Max) 0.043 1.10mm
Compliance
RoHS Status ROHS3 Compliant
