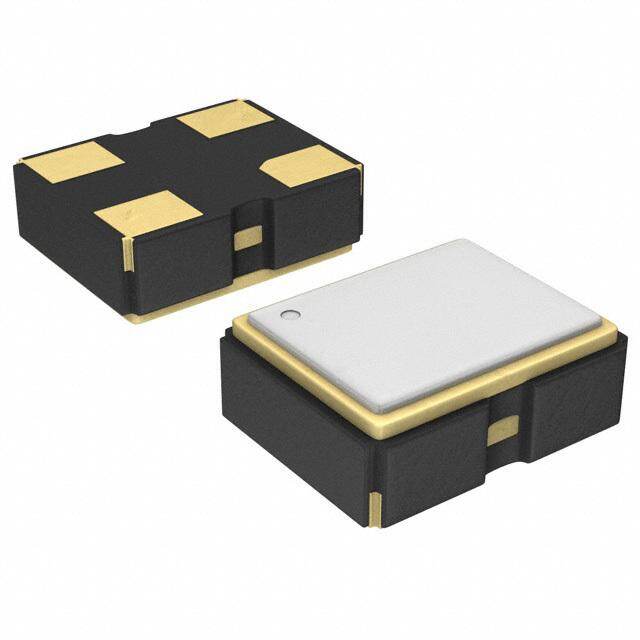

EA2532XA08-18.432M
RoHS
/
Package /
Category Crystals, Oscillators, Resonators / Crystals
Description
Ceramic Lead Free Non-RoHS Compliant SURFACE MOUNT quartz crystal 100μW 8pF 2.5mm 70C
PDF
/
Inventory: 3758
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Surface Mount YES
Mounting Feature SURFACE MOUNT
Number of Pins 4
Material Ceramic
Technical
JESD-609 Code e4
Pbfree Code yes
Terminal Finish Nickel/Gold (Ni/Au)
Additional Feature AT CUT; BULK; TAPE
Frequency 18.432MHz
Pin Count 4
Operating Temperature (Max) 70°C
Physical Dimension L3.2XB2.5XH0.8 (mm)/L0.126XB0.098XH0.031 (inch)
Operating Temperature (Min) -20°C
Operating Frequency 18.432MHz
ESR (Equivalent Series Resistance) 80Ohm
Load Capacitance 8pF
Frequency Tolerance 0.001%
Drive Level 100 μW
Aging 3 PPM/YEAR
Crystal/Resonator Type PARALLEL - FUNDAMENTAL
Dimensions
Length 3.2mm
Width 2.5mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
