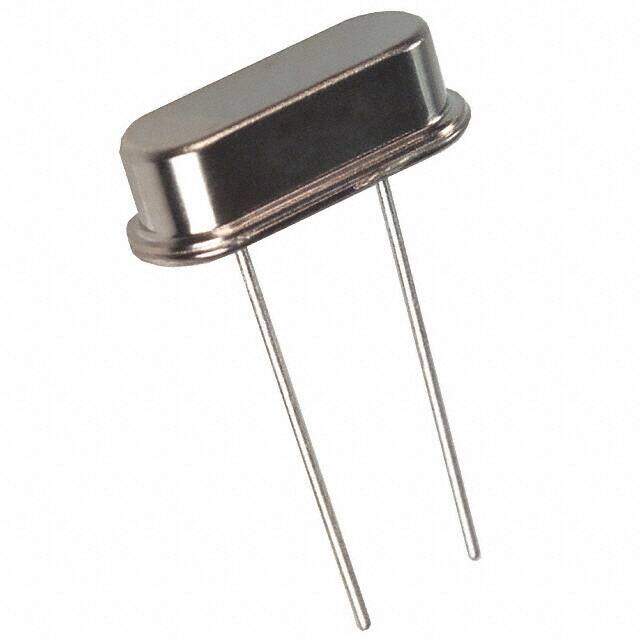

ATS147-E
RoHS
RoHS compliant
RoHS compliantPackage HC-49/US
Category Crystals, Oscillators, Resonators / Crystals
Description
CRYSTAL 14.7456MHZ SERIES T/H
PDF
/
Inventory: 3031
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.145 3.68mm
Technical
Drive Level 100 μW
Frequency Tolerance ±30ppm
Operating Mode Fundamental
Load Capacitance Series
ESR (Equivalent Series Resistance) 40Ohm
Operating Frequency 14.7456MHz
Physical Dimension 10.85mm X 4.50mm X 3.68mm
Frequency Stability ±50ppm
Frequency 14.7456MHz
HTS Code 8541.60.00.50
Additional Feature AT CUT
Terminal Finish Tin/Silver/Copper - with Nickel barrier
Type MHz Crystal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.427Lx0.177W 10.85mmx4.50mm
Series ATS
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Surface Mount NO
Package / Case HC-49/US
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
