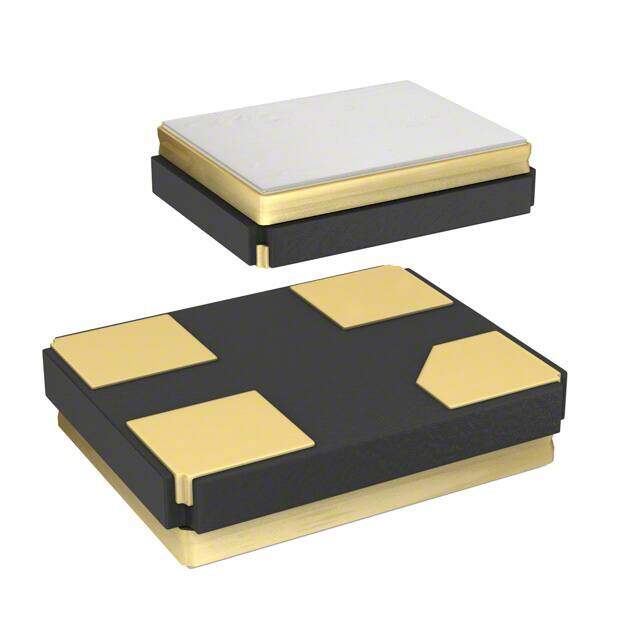

416F25022CAR image
Favorite
416F25022CAR image
Favorite
RoHS
RoHS RoHS compliant
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Crystals
Description Fundamental Active ROHS3Compliant 2015 Crystal 10μW 10pF 0.018 0.45mm -20C~70C
PDF
/
Inventory: 6124
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Surface Mount YES

Technical

Operating Temperature -20°C~70°C
Packaging Tape & Reel (TR)
Published 2015
Series 416
Size / Dimension 0.063Lx0.047W 1.60mmx1.20mm
JESD-609 Code e4
Part Status Active
Drive Level 10 μW
Operating Mode Fundamental
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 120Ohm
Operating Frequency 25MHz
Physical Dimension L1.6XB1.2XH0.35 (mm)/L0.063XB0.047XH0.014 (inch)
Frequency Stability ±20ppm
Frequency 25MHz
HTS Code 8541.60.00.60
Additional Feature AT-CUT; TR, 7 INCH
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type MHz Crystal
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.018 0.45mm
