416F2401XCTR
RoHS
RoHS compliant

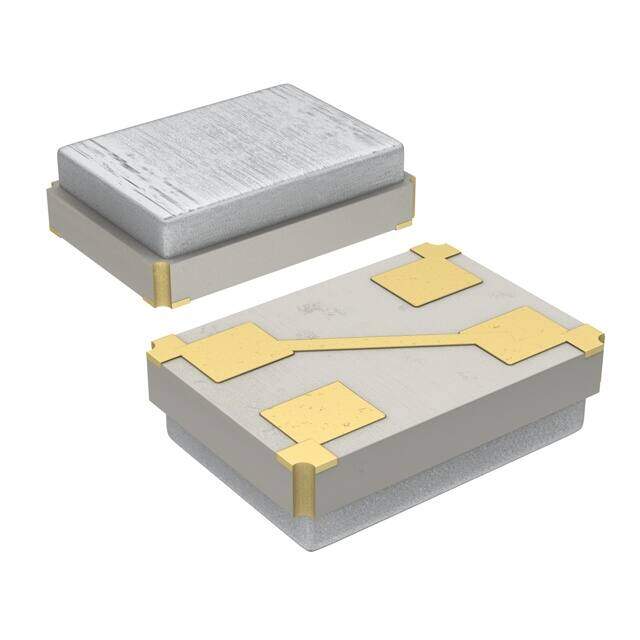

RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Crystals
Description
Fundamental Active ROHS3Compliant 2015 Crystal 10μW 6pF 0.018 0.45mm -20C~70C
PDF
/
Inventory: 7324
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Surface Mount YES
Technical
Operating Temperature -20°C~70°C
Packaging Tape & Reel (TR)
Published 2015
Series 416
Size / Dimension 0.063Lx0.047W 1.60mmx1.20mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type MHz Crystal
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Additional Feature AT-CUT; TR, 7 INCH
HTS Code 8541.60.00.60
Frequency 24MHz
Frequency Stability ±15ppm
Physical Dimension L1.6XB1.2XH0.35 (mm)/L0.063XB0.047XH0.014 (inch)
Operating Frequency 24MHz
ESR (Equivalent Series Resistance) 120Ohm
Load Capacitance 6pF
Operating Mode Fundamental
Frequency Tolerance ±10ppm
Drive Level 10 μW
Dimensions
Height Seated (Max) 0.018 0.45mm
Compliance
RoHS Status ROHS3 Compliant
