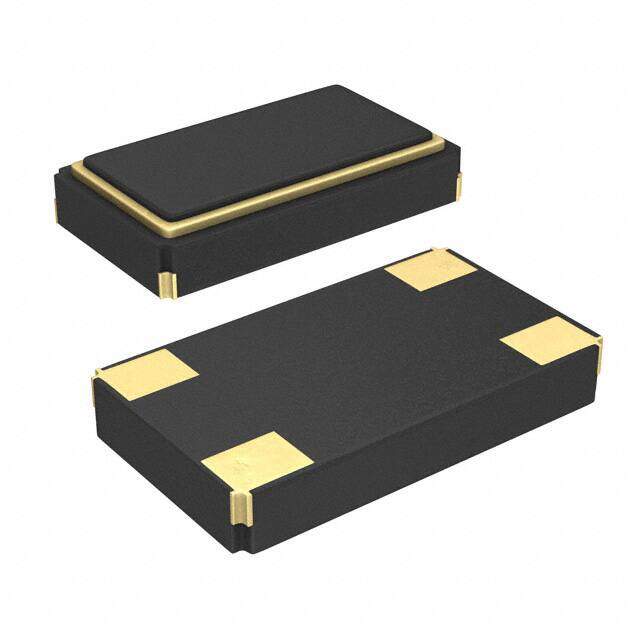

406C35D24M00000
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Crystals
Description
CRYSTAL 24.0000MHZ 18PF SMD
PDF
/
Buying Options
Total Price: USD $0.78
Unit Price: USD $0.7832
≥1 USD $0.7832
≥10 USD $0.68904
≥100 USD $0.644336
≥500 USD $0.569448
≥1000 USD $0.539458
Inventory: 912
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.047 1.20mm
Technical
Drive Level 10 μW
Frequency Tolerance ±30ppm
Operating Mode Fundamental
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40Ohm
Operating Frequency 24MHz
Physical Dimension L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)
Frequency Stability ±50ppm
Frequency 24MHz
HTS Code 8541.60.00.60
Additional Feature AT CUT; TR, 7 INCH
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type MHz Crystal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.236Lx0.138W 6.00mmx3.50mm
Series 406
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C
Physical
Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
