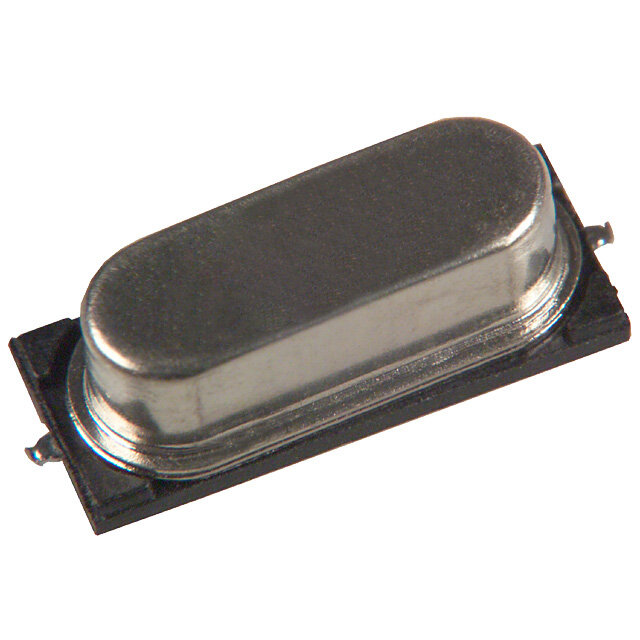

ATS15ASM
RoHS
/
Package /
Category Crystals, Oscillators, Resonators / Crystals
Description
Crystals 15.36MHz 20pF
PDF
/
Inventory: 3161
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Copper, Silver, Tin
Mount Surface Mount
Number of Pins 2
Technical
Packaging Bulk
Published 2000
Tolerance 0.003%
JESD-609 Code e1
Pbfree Code yes
Termination SMD/SMT
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Additional Feature AT-CUT CRYSTAL; TAPE AND REEL
HTS Code 8541.60.00.50
Frequency 15.36MHz
Frequency Stability 50 ppm
Physical Dimension L11.1XB4.83XH4.3 (mm)/L0.437XB0.19XH0.169 (inch)
Operating Frequency 15.36MHz
Load Capacitance 20pF
Frequency Tolerance 0.005%
Drive Level 10 μW
Crystal/Resonator Type PARALLEL - FUNDAMENTAL
Series Resistance 40Ohm
Dimensions
Height 4.3mm
Length 12.3mm
Width 4.83mm
Compliance
RoHS Status RoHS Compliant
