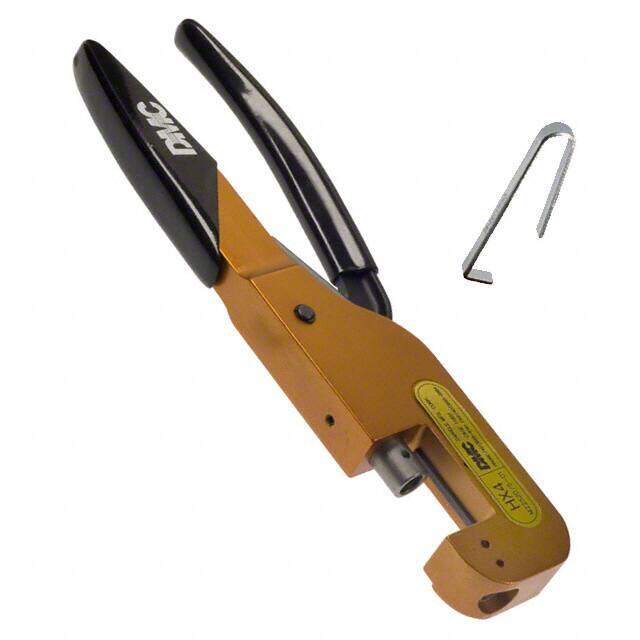

227-944
RoHS
/
Package /
Category Tools / Crimpers, Applicators, Presses
Description
TOOL CRIMP FRAME W/OUT DIE
PDF
/
Buying Options
Total Price: USD $751.4
Unit Price: USD $751.3968
≥1 USD $751.3968
≥10 USD $725.49136
≥100 USD $699.58064
Inventory: 70
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material COPPER ALLOY
Contact Plating Gold
Mounting Type BOARD
Insulation Material THERMOPLASTIC
Mounting Style STRAIGHT
Technical
Published 2001
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type BOARD STACKING CONNECTOR
Number of Rows 2
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating AU
Total Number of Contacts 48
Terminal Pitch 1.27mm
Reach Compliance Code compliant
Military Standard M22520
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.2 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.14 inch
Contact Gender MALE
Body Depth 0.06 inch
Contact Style SQ PIN-SKT
Mating Contact Pitch 0.05 inch
Body/Shell Style RECEPTACLE
Termination Type SURFACE MOUNT
PCB Contact Row Spacing 3.81 mm
Contact Pattern RECTANGULAR
Mating Contact Row Spacing 0.05 inch
Insulator Color BLACK
Tool Type Hand Crimper
Tool Method Manual
Ratcheting No Ratchet
Tool Type Feature Without Die Set
Dimensions
Plating Thickness 10μin
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status Non-RoHS Compliant
Lead Free Not Applicable
