88974053
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Industrial Automation and Controls / Controllers - Programmable Logic (PLC)
Description

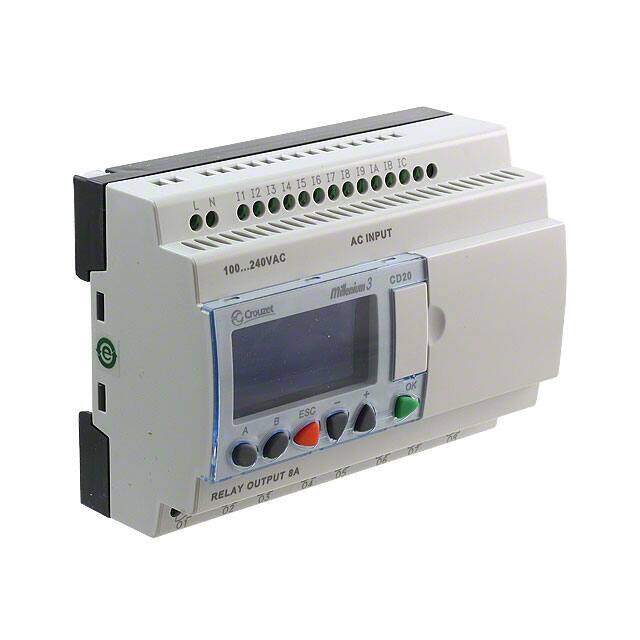

Controllers M3 CUSTOM CD20R 12 8 100 240VAC
PDF
/
Buying Options
Total Price: USD $293.55
Unit Price: USD $293.5504
≥1 USD $293.5504
Inventory: 73
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Chassis Mount, DIN Rail, Panel
Mounting Type Chassis Mount, DIN Rail
Package / Case Module
Technical
Operating Temperature -20°C~70°C
Published 2005
Series Millenium 3, CD20
Feature Battery Backup (Lithium)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Voltage - Supply 100V~240VAC
Ingress Protection IP40
Depth 68mm
Number of Outputs 8
Approval Agency CE, CSA, GL, UL
Operating Supply Voltage 240V
Memory Size 368Bits/200Words
Output Current 12A
Mechanical Life 1e+07 cycles
Response Time 5 ms
Number of Inputs 12
Display Type LCD - White Characters, Backlight
Number of Characters Per Row 18, 18, 18, 18
Number of Inputs and Type 12 - Digital
Number of Outputs and Type 8 - Relay
Expandable Non-Expandable
Software M3 Soft
Dimensions
Height 90mm
Length 107.6mm
Width 124.6mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings IP20, IP40
