88974034
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Industrial Automation and Controls / Controllers - Programmable Logic (PLC)
Description

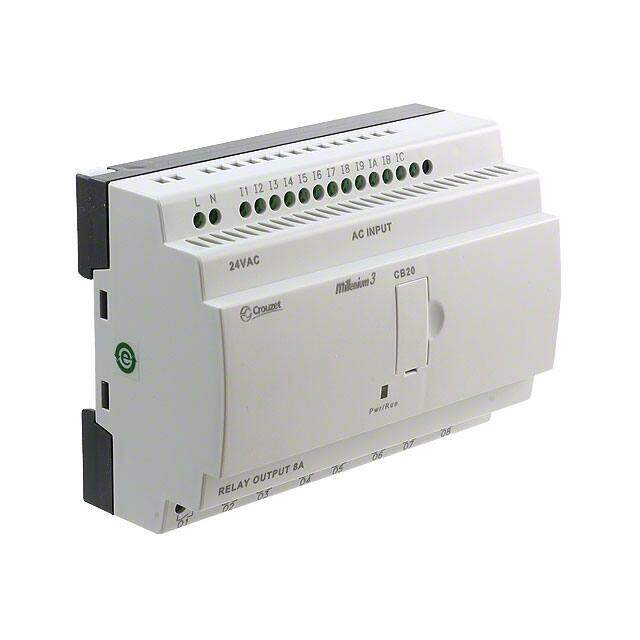

Controllers M3 CUSTOM CB20R 12/8 24VAC
PDF
/
Inventory: 5138
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP40
RoHS Status RoHS Compliant
Dimensions
Width 71.2mm
Length 100mm
Technical
Software M3 Soft
Expandable Non-Expandable
Number of Outputs and Type 8 - Relay
Number of Inputs and Type 12 - Digital
Display Type No Display
Number of Inputs 12
Response Time 5 ms
Mechanical Life 1e+07 cycles
Output Current 12A
Memory Size 368Bits/200Words
Operating Supply Voltage 24V
Approval Agency CE, CSA, GL, UL
Number of Outputs 8
Depth 67.5mm
Ingress Protection IP40
Voltage - Supply 24VAC
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Battery Backup (Lithium)
Series Millenium 3, CB20
Published 2011
Operating Temperature -20°C~70°C
Physical
Package / Case Module
Mounting Type Chassis Mount, DIN Rail
Mount Chassis Mount, DIN Rail, Panel
Supply Chain
Factory Lead Time 3 Weeks
